Debug Cloud Access issues

Validate configuration

To get you started, ensure you’ve followed the access cloud infrastructure documentation. Having done that we can start debugging.

Check tenant configuration

Go to the platform-environments repo and ensure your tenant has cloud access properly configured.

cloudAccess:
  - name: ca
    provider: gcp
    environment: all
    kubernetesServiceAccounts:
      - <your_namespace>/<sa-name>
  • Have your changes been merged?
  • Has the pipeline finished?

Looking at kubernetesServiceAccounts:

  • Is the namespace you’re trying to connect from listed there?
  • Does the Service Account name match? The Kubernetes Service Account being used by your deployment/pod needs to match exactly what is defined there?

Tenant Provisioner status

In case all above looks correct, there might be exceptional issues with the tenant provisioner. In this case, you should reach out to a platform operator and ask them to check the status of the tenant provisioning of your tenant. This functionality will be added to corectl in a future release.

Validate permissions

Failure on CI

If the issue is on CI creating the resources/connecting to your account, it might be an issue with the configured service account. Out of the box, the SA using on GH actions will work to deploy to your tenant’s namespace in the Kubernetes Cluster, to use the same SA to deploy your infrastructure in a different GCP account, you need to ensure that SA has permission to do so.

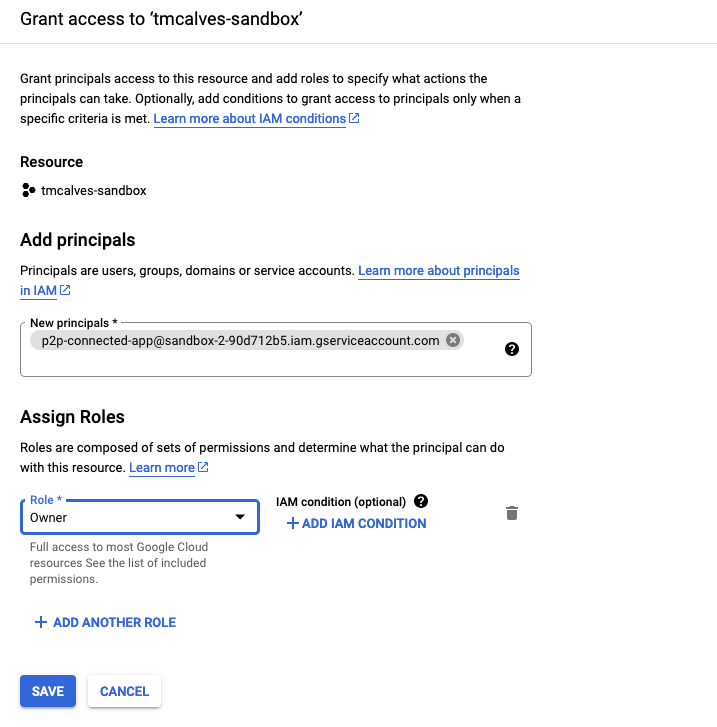

Validate that the p2p service account has enough permission on your own GCP project

The p2p service account needs permission to deploy the infrastructure.

The principal will be p2p-<tenantName>@<platformProjectId>.iam.gserviceaccount.com.

The role of Owner will allow it to create anything it needs, feel free to make this more restrictive.

Namespace Dashboard

Deploy gcloud-debug pod

Failure on the application

In order to determine whether the problem lies in the application code or is an issue with GCP permissions, you can deploy a gcloud-debug pod to your tenant namespace. This pod can use the same service account as your application, allowing you to perform operations directly using the gcloud CLI.

Create gcloud-debug pod

Example Kubernetes manifest file for gcloud-debug pod

gcloud-debug-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: gcloud-debug
  labels:
    app: gcloud-debug
spec:
  serviceAccountName: <service_account_name>
  containers:
    - name: gcloud-debug
      image: google/cloud-sdk:latest
      imagePullPolicy: IfNotPresent
      command: ["/bin/sh"]
      args: ["-c", "sleep 3600"]

This can help you understand if the issue is on your own GCP Account that hasn’t given enough permissions to the service account.

This pod can be deployed to your namespace with:

kubectl apply -f gcloud-debug-pod.yaml --namespace ${NAMESPACE}

Use gcloud-debug pod for debugging

Once the pod has been deployed, you can open a shell into it:

kubectl exec -it gcloud-debug --namespace ${NAMESPACE} -- /bin/sh

You can now use the gcloud CLI as your service account. To verify that the service account is being used, check the output of gcloud auth list.

Cleanup

After debugging, remember to delete the gcloud-debug pod to clean up your namespace:

kubectl delete pod gcloud-debug --namespace ${NAMESPACE}

If none of these work, reach out to a platform operator to drill down for any exceptional causes.
